| Sản phẩm |
Bo mạch chủ |
| Tên Hãng |
ASUS |
| Model |

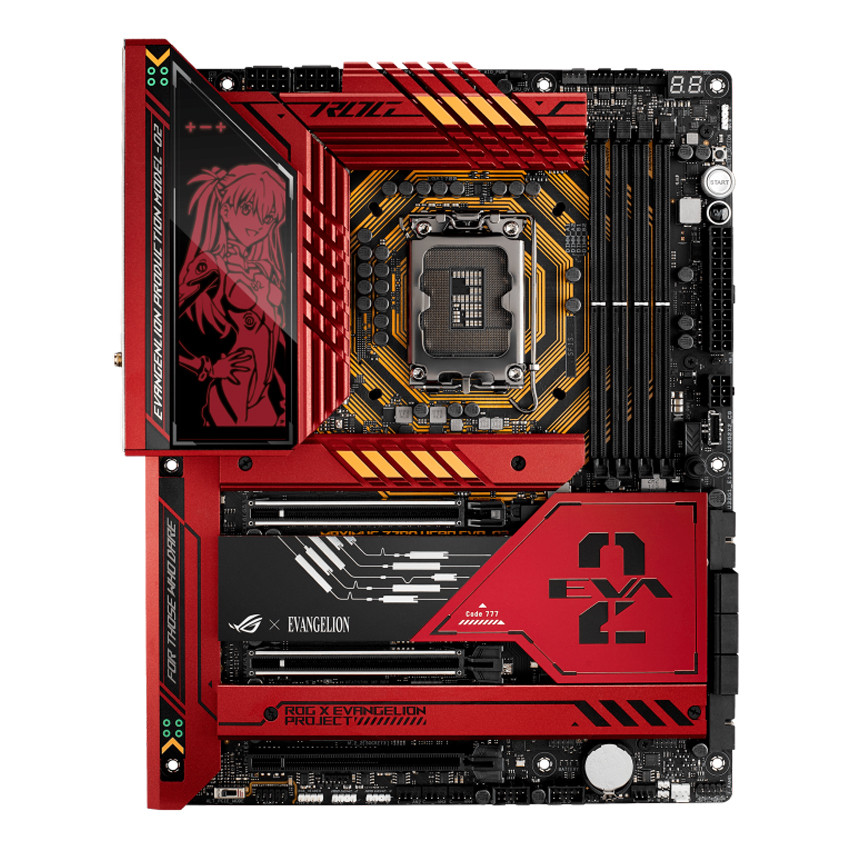

ROG MAXIMUS Z790 HERO EVA-02 |
| CPU hỗ trợ |
Hỗ trợ cho thế hệ thứ 14, 13 và 12 Intel® Core Socket LGA1700 |
| Chipset |
Z790 |
| RAM hỗ trợ |
4 x DIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture |
| Supports Intel® Extreme Memory Profile (XMP) |
| * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Khe cắm mở rộng |
Intel® CoreTM Processors (14th & 13th & 12th Gen)* |
| 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** |
| Intel® Z790 Chipset |
| 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| ** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Ổ cứng hỗ trợ |
|
| Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* |
| Intel® 13th & 12th Gen Processors* |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.) |
| Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** |
| Intel® Z790 Chipset** |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)** |
| Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)*** |
| 6 x SATA 6Gb/s ports**** |
| * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| ** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. |
| *** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. |
| **** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports |
| Cổng kết nối (Internal) |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| 1 x W_PUMP+ header |
| 1 x 2-pin Water In header |
| 1 x 2-pin Water Out header |
| 1 x 3-pin Water Flow header |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V Power connector |
| 1 x 6-pin PCIe Power connector |
| Storage related |
| 3 x M.2 slots (Key M) |
| 6 x SATA 6Gb/s ports |
| USB |
| 1 x USB 20G connector (supports USB Type-C® ) |
| 2 x USB 5G headers support additional 4 USB 5G ports |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x AURA RGB header |
| 1 x FlexKey button |
| 1 x Front Panel Audio header (AAFP) |
| 1 x Start button |
| 1 x ReTry button |
| 1 x 10-1 pin System Panel header |
| 1 x Thermal Sensor header |
| 1 x CPU Over Voltage jumper |
| 1 x Alternative PCIe Mode switch |
| Cổng kết nối (Back Panel) |
2 x Thunderbolt™ 4 USB Type-C® ports |
| 6 x USB 10G ports (5 x Type-A + 1 x USB Type-C®) |
| 4 x USB 5G ports (4 x Type-A) |
| 1 x HDMI® port |
| 1 x Wi-Fi Module |
| 1 x Intel® 2.5Gb Ethernet port |
| 5 x Gold-plated audio jacks* |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack™ button |
| 1 x Clear CMOS button |
| Lan |
1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard |
| WIRELESS/BLUETOOTH |
Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Supports 2.4/5/6GHz frequency band* |
| Bluetooth® v5.3** |
| * WiFi 6E 6GHz regulatory may vary between countries. |
| ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Kích cỡ |
ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
