Chưa có đánh giá384 lượt xemMã: Mainboard-ASUS-H610M-K-DDR5Liên hệ tư vấn
Giá bán tại HMPC
1.999.000₫2.093.000₫Tiết kiệm 4%
Thương hiệu: ASUS
Model: PRIME H610M-K
Chipset: Intel ® H610 Chipset
Xuất hình tích hợp: 1 x VGA port 1 x HDMI ™ port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Lưu trữ: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel ® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
ASUS PRIME H610M-K kết hợp chipset Intel ® H610 Chipset và nền tảng LGA1700 cho bộ máy dùng DDR5. Dòng Prime cần được lựa chọn cùng loại CPU, số thiết bị lưu trữ và không gian thùng máy để khai thác đúng các kết nối của phiên bản này.
Intel ® H610 Chipset trên nền tảng LGA1700
Nhóm CPU hãng công bố: Intel ® Socket LGA1700 for Intel ® Core™ 14 th & 13 th Gen Processors, Intel ® Core™ 12 th Gen, Pentium ® Gold and Celeron ® Processors* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support…. Đây là cơ sở để chọn bộ xử lý theo socket và dòng CPU được hỗ trợ, thay vì chỉ dựa trên thương hiệu.
Khi lắp CPU ra mắt sau bo mạch, danh sách hỗ trợ và mốc BIOS trên trang ASUS giúp xác định phiên bản firmware cần sử dụng.

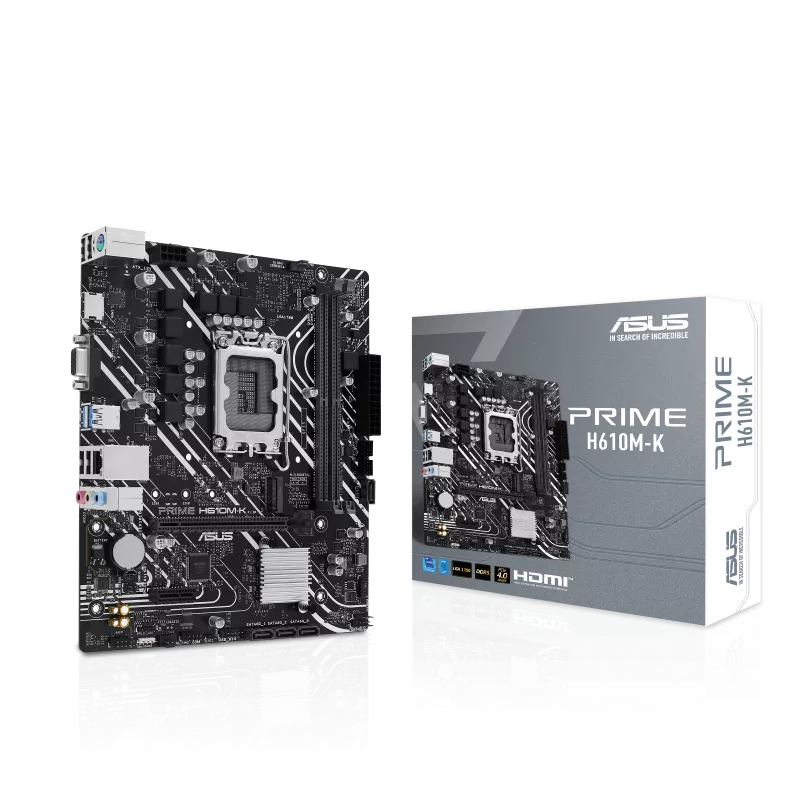

ASUS PRIME H610M-K – ảnh do hãng công bố.
DDR5 và cấu hình RAM
Khả năng bố trí bộ nhớ được ghi: 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*. Những công nghệ hoặc profile được liệt kê gồm XMP. Phiên bản này sử dụng DDR5; RAM DDR4 không dùng thay được.
Các mức có ghi OC hoặc profile thuộc điều kiện CPU và bộ nhớ hãng nêu. Khi chọn một bộ kit cụ thể, danh sách tương thích RAM giúp xác định cấu hình đã được nhà sản xuất kiểm tra.
Lưu trữ M.2 và các đường mở rộng
ASUS công bố: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. Các thông số từng khe: Intel ® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports. Khe M.2, khe PCIe và các cổng SATA có thể nhận đường từ CPU hoặc chipset; điều kiện chia đường được giữ trong bảng thông số.
Khi có nhiều ổ và thiết bị mở rộng, đối chiếu sơ đồ trong hướng dẫn sử dụng giúp chọn vị trí lắp để sử dụng đúng băng thông và chuẩn ổ.
ASUS PRIME H610M-K – ảnh do hãng công bố.
Kết nối mạng và thiết bị ngoại vi
Mạng có dây của model: 1 x Realtek 1Gb Ethernet. Hệ thống USB được phân biệt giữa cổng ở mặt sau và header cho mặt trước thùng máy, giúp dự tính số thiết bị cùng cách đi dây.
Bố cục bo và các hỗ trợ lắp đặt
Chuẩn và kích thước bo được công bố: micro-ATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ). Q-LED hỗ trợ nhận biết nhóm linh kiện khi kiểm tra khởi động. Cổng xuất hình trên bo cần CPU có đồ họa tích hợp tương thích; với CPU không có đồ họa tích hợp, màn hình được nối vào card rời.
ASUS PRIME H610M-K – ảnh do hãng công bố.
Thông số và ảnh đối chiếu từ ASUS PRIME H610M-K; nội dung do HMPC biên tập.
Thông tin
Thông số kỹ thuật
Thương hiệu
ASUS
Model
PRIME H610M-K
CPU và socket
Intel ® Socket LGA1700 for Intel ® Core™ 14 th & 13 th Gen Processors, Intel ® Core™ 12 th Gen, Pentium ® Gold and Celeron ® Processors* Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel ® H610 Chipset
Bộ nhớ
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel ® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ . * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Xuất hình tích hợp
1 x VGA port 1 x HDMI ™ port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Khe mở rộng
Intel ® Core™ Processors (14 th & 13 th & 12 th Gen) 1 x PCIe 4.0 x16 slot Intel ® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Lưu trữ
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel ® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Mạng có dây
1 x Realtek 1Gb Ethernet
Kết nối USB
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Âm thanh
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMI ™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Software Features
ASUS Exclusive Software Armoury Crate - Fan Xpert 2+ AI Suite 3 - EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Chuẩn kích thước
micro-ATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
