Thông tin sản phẩm : Nhà sản xuất : ASUS Bảo hành : 36 tháng ## Thông số kỹ thuật: CPU AMD Socket AM5 dành cho bộ xử lý máy tính để bàn dòng AMD Ryzen™ 9000 &…

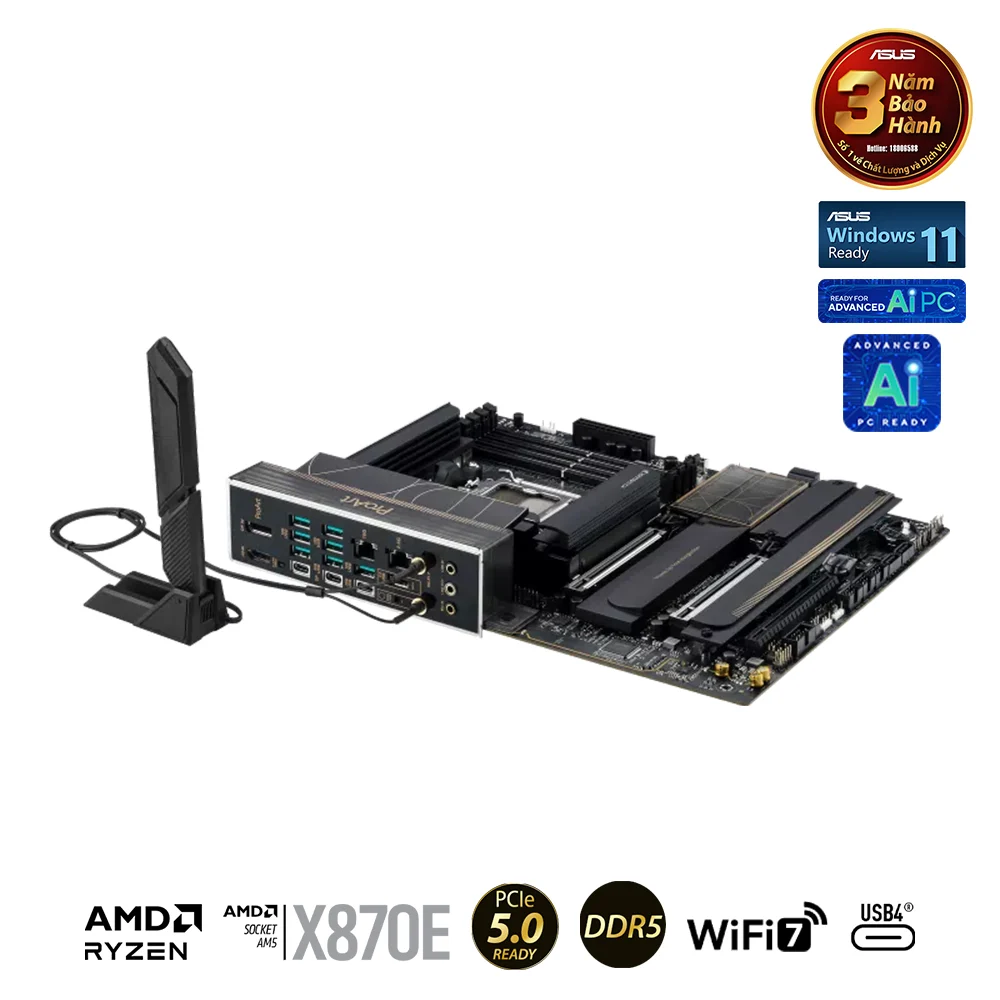

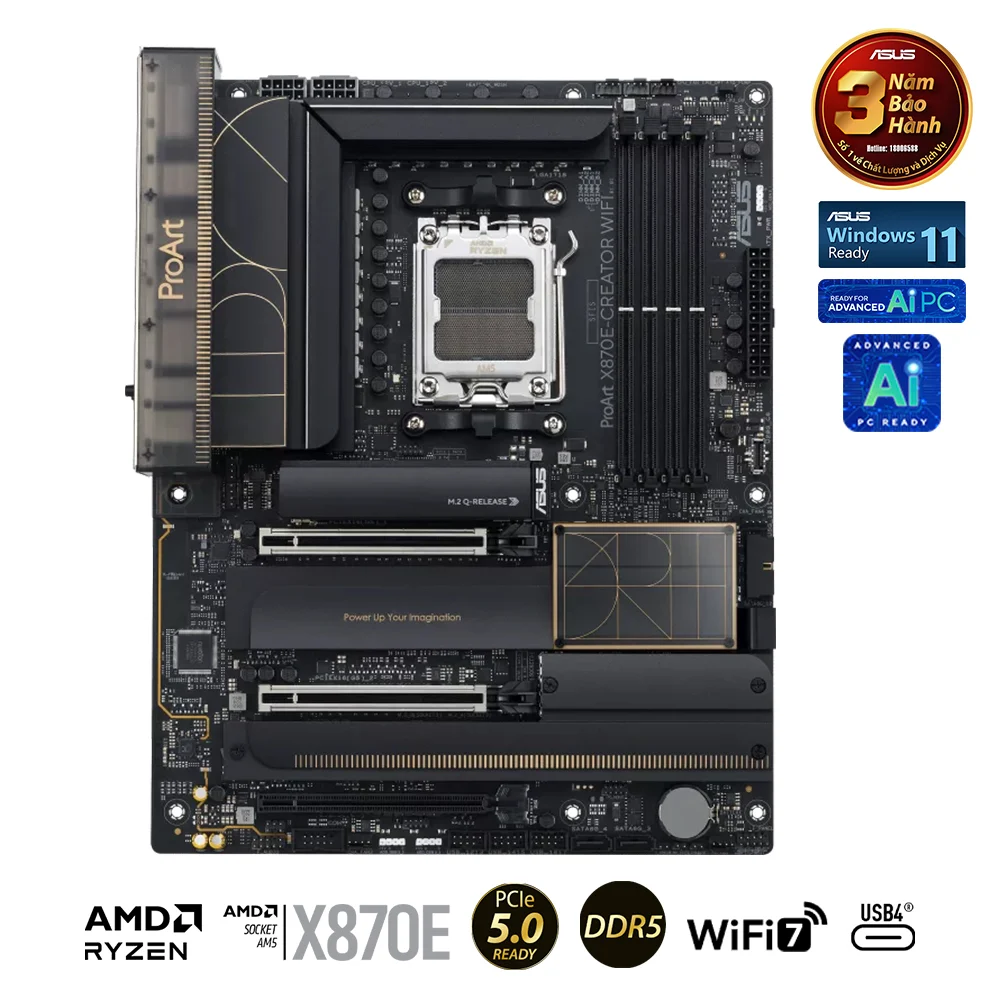

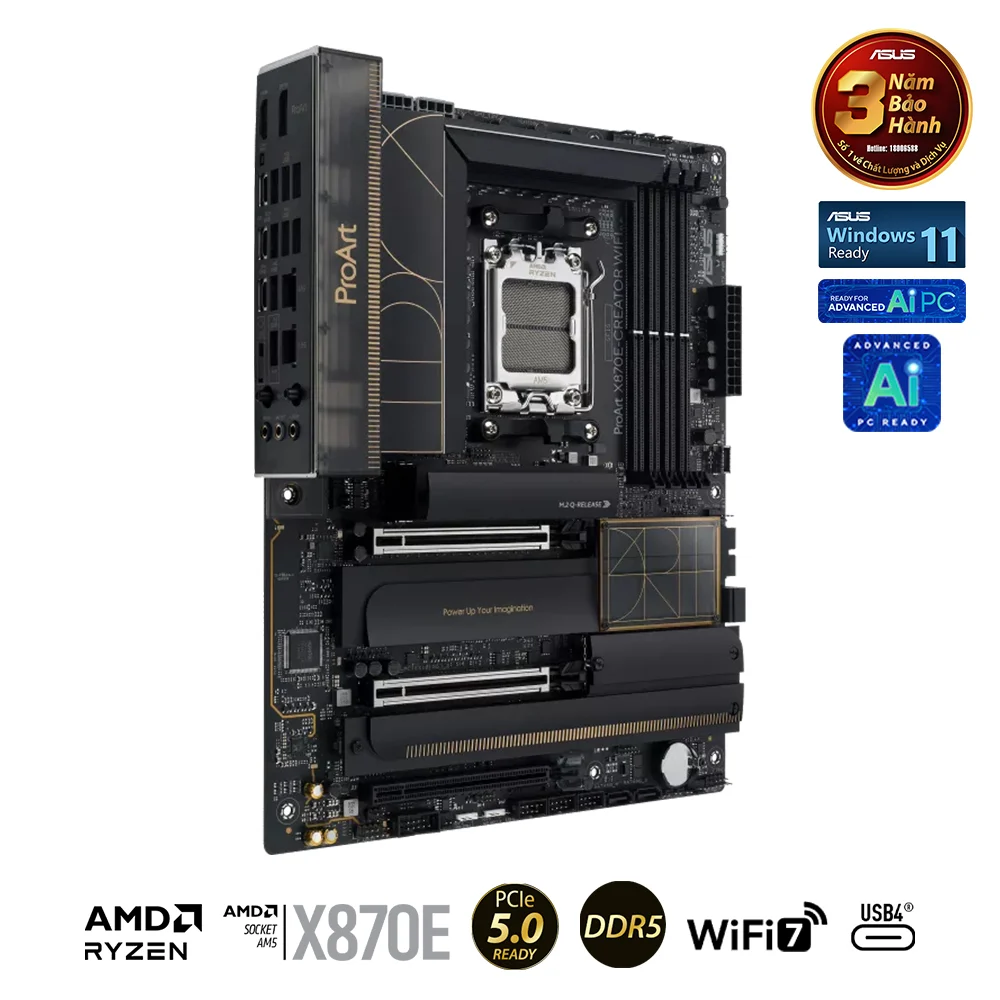

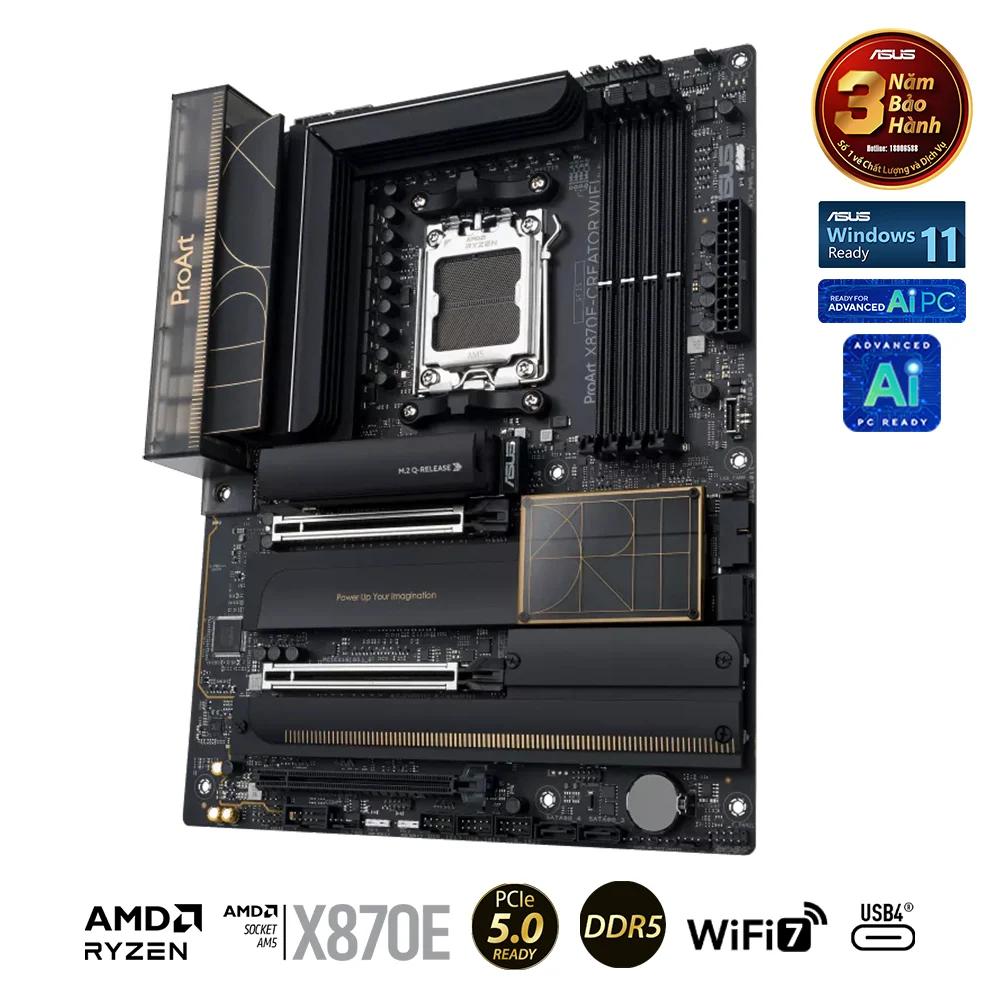

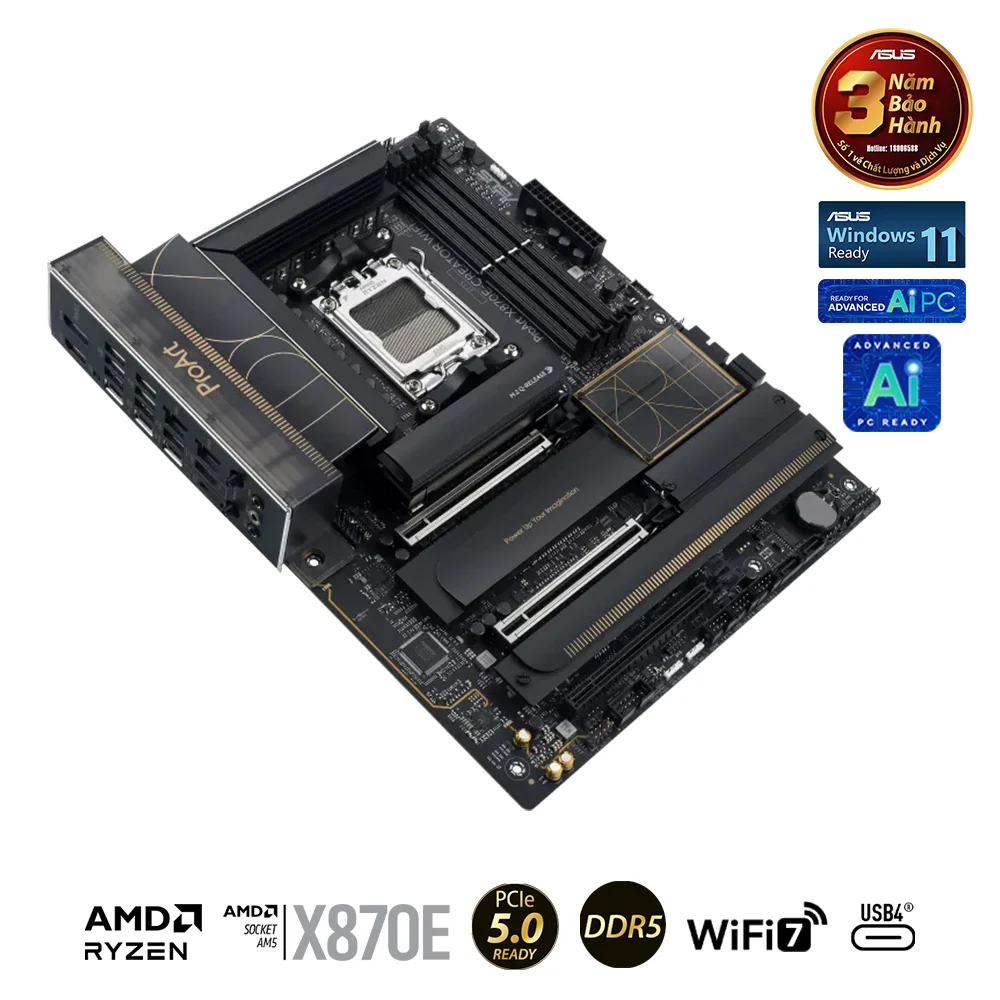

Mainboard Asus PROART X870E-CREATOR WIFI DDR5.
Built for creators, ProArt X870E-Creator WiFi features ASUS AI technologies, PCIe® 5.0, DDR5 slots, dual USB4®, 10 Gb & 2.5 Gb LAN, WiFi 7 and four M.2 slots
| Kiểu RAM hỗ trợ | DDR5 |
| Socket | AM5 |
| Kích thước | ATX |
| Số khe M.2 | 4 khe |
| CPU hỗ trợ | AMD Ryzen 7000, AMD Ryzen 8000 Series, AMD Ryzen 9000 |
| Chipset | AMD X870E |
| Khe RAM tối đa | 4 khe |
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | ASUS |
| RAM hỗ trợ | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,8000+MT/s(OC) with Ryzen™ 8000 Series Processors,8000+MT/s(OC) with Ryzen™ 7000 Series Processors,ECC and Non-ECC Un-buffered DIMMDual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™) |
| Khe cắm mở rộng | AMD Ryzen™ 9000 & 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)AMD Ryzen™ 8500 & 8300 Series Desktop Processors*1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)A |
| Ổ cứng hỗ trợ | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot is not supported AMD X870E ChipsetM.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280/2211 |
| Cổng kết nối (Internal) | Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports3 x USB 2.0 headers support 6 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x C |
| Cổng kết nối (Back Panel) | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)7 x USB 10Gbps ports (7 x Type-A)1 x USB 2.0 port (1 x Type-A)1 x DisplayPort (Input only)1 x HDMITM port1 x Wi-Fi Module1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack™ button1 x Clear CMOS button |
| LAN / Wireless | 1 x Marvell® AQtion 10Gb Ethernet1 x Intel® 2.5Gb EthernetASUS LANGuard Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.Bluetooth® v5.4*** |
| Kích cỡ | ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Giá niêm yết: | 16.599.000 đ |
| Giá khuyến mại: | 14.999.000 đ [Giá đã có VAT] |
