Bo mạch chủ ASUS TUF GAMING B760M-PLUS WIFI DDR5 | B760, LGA1700, mATX, 4 khe RAM
Chưa có đánh giá666 lượt xemMã: Mainboard-Asus-TUF-Gaming-B760M-PLUS-Wifi-DDR5-Socket-1700-M-ATX-4-khe-ramLiên hệ tư vấn
Giá bán tại HMPC
4.000.000₫4.261.000₫Tiết kiệm 6%
Thương hiệu: ASUS
Model: TUF GAMING B760M-PLUS WIFI
Chipset: Intel ® B760 Chipset
Mạng có dây: 1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wi-Fi và Bluetooth: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
ASUS TUF GAMING B760M-PLUS WIFI kết hợp chipset Intel ® B760 Chipset và nền tảng LGA1700 cho bộ máy dùng DDR5. Dòng TUF Gaming cần được lựa chọn cùng loại CPU, số thiết bị lưu trữ và không gian thùng máy để khai thác đúng các kết nối của phiên bản này.
Intel ® B760 Chipset trên nền tảng LGA1700
Nhóm CPU hãng công bố: Intel ® Socket LGA1700 for Intel ® Core™ 14th & 13th Gen Processors, Intel ® Core™ 12th Gen, Pentium ® Gold and Celeron ® Processors* Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list.…. Đây là cơ sở để chọn bộ xử lý theo socket và dòng CPU được hỗ trợ, thay vì chỉ dựa trên thương hiệu.
Khi lắp CPU ra mắt sau bo mạch, danh sách hỗ trợ và mốc BIOS trên trang ASUS giúp xác định phiên bản firmware cần sử dụng.

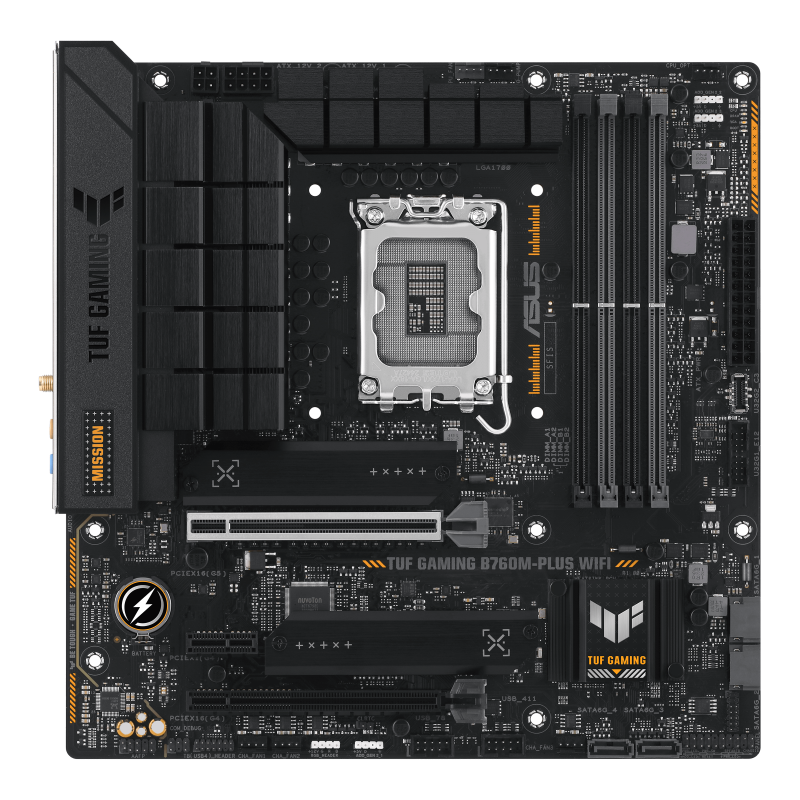

ASUS TUF GAMING B760M-PLUS WIFI – ảnh do hãng công bố.
DDR5 và cấu hình RAM
Khả năng bố trí bộ nhớ được ghi: 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*. Những công nghệ hoặc profile được liệt kê gồm XMP, OptiMem II. Phiên bản này sử dụng DDR5; RAM DDR4 không dùng thay được.
Các mức có ghi OC hoặc profile thuộc điều kiện CPU và bộ nhớ hãng nêu. Khi chọn một bộ kit cụ thể, danh sách tương thích RAM giúp xác định cấu hình đã được nhà sản xuất kiểm tra.
Lưu trữ M.2 và các đường mở rộng
ASUS công bố: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*. Các thông số từng khe: Intel ® 14 th &13 th & 12 th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset. Khe M.2, khe PCIe và các cổng SATA có thể nhận đường từ CPU hoặc chipset; điều kiện chia đường được giữ trong bảng thông số.
Khi có nhiều ổ và thiết bị mở rộng, đối chiếu sơ đồ trong hướng dẫn sử dụng giúp chọn vị trí lắp để sử dụng đúng băng thông và chuẩn ổ.

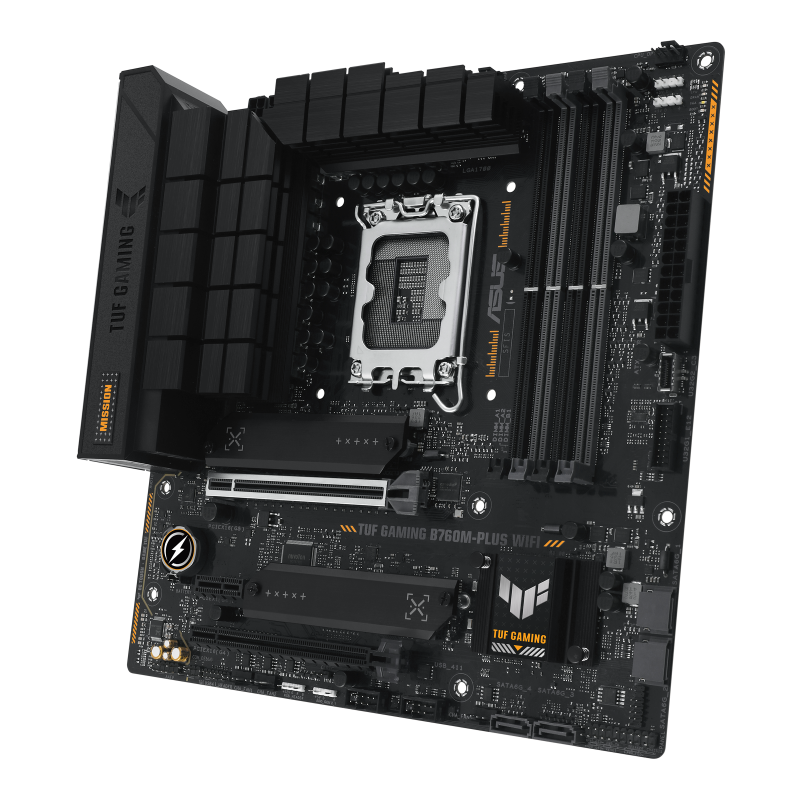

ASUS TUF GAMING B760M-PLUS WIFI – ảnh do hãng công bố.
Kết nối mạng và thiết bị ngoại vi
Mạng có dây của model: 1 x Realtek 2.5Gb Ethernet TUF LANGuard. Kết nối không dây: Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.. Hệ thống USB được phân biệt giữa cổng ở mặt sau và header cho mặt trước thùng máy, giúp dự tính số thiết bị cùng cách đi dây.
Bố cục bo và các hỗ trợ lắp đặt
Chuẩn và kích thước bo được công bố: mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ). M.2 Q-Latch hỗ trợ giữ SSD khi lắp đặt; Q-LED hỗ trợ nhận biết nhóm linh kiện khi kiểm tra khởi động. Cổng xuất hình trên bo cần CPU có đồ họa tích hợp tương thích; với CPU không có đồ họa tích hợp, màn hình được nối vào card rời.
ASUS TUF GAMING B760M-PLUS WIFI – ảnh do hãng công bố.
Intel ® Socket LGA1700 for Intel ® Core™ 14th & 13th Gen Processors, Intel ® Core™ 12th Gen, Pentium ® Gold and Celeron ® Processors* Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel ® B760 Chipset
Bộ nhớ
4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel ® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Xuất hình tích hợp
1 x DisplayPort** 1 x HDMI™port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1.
Khe mở rộng
Intel ® 14 th & 13 th & 12 th Gen Processors 1 x PCIe 5.0 x16 slot Intel ® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Lưu trữ
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® 14 th &13 th & 12 th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel ® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Mạng có dây
1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wi-Fi và Bluetooth
Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth ® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Kết nối USB
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports ) 1 x USB 3.2 Gen 2 connector (supports USB Type-C ® )* 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
Âm thanh
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® ) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors
I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4 ® ) header
Special Features
ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Software Features
ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Chuẩn kích thước
mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
